Technical Data
| Series | Duo Plus | |

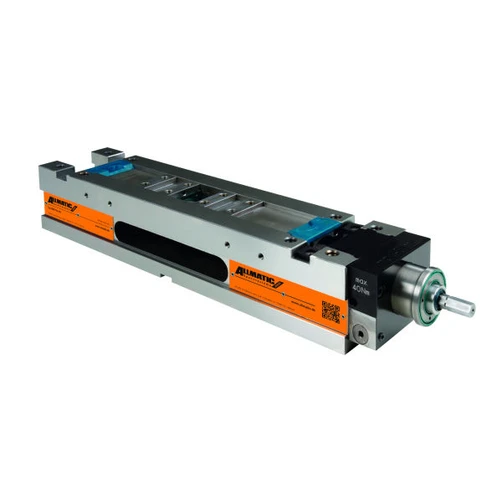

| Manufacturer’s designation | NC-Hochdruckspanner Duo Plus, Typ: 125 | |
| Clamping range | no clamping range | |
| Colour | grey; orange; black | |
| Min. overall length L | 633 mm | |
| Max. overall length L | 633 mm | |
| Base body length a | 530 mm | |
| Base body width B | 126 mm | |
| Base body height c | 100 mm | |
| Clamping depth h2 | 15 mm | |
| Clamping force selection | at 40 Nm | |
| Clamping force | 40 kN | |
| Maximum torque | 40 Nm | |
| Tenon slots | longitudinal slot; cross-slot | |
| Transverse slot width n | 20 mm | |
| Width of longitudinal groove l | 20 mm | |
| With bore | yes | |
| Version | mechanical | |
| Weight | 40 kg | |
| Material | spheroidal graphite iron | |
| Surface | ground; hardened | |
| Type of product | machine vice |
