Version

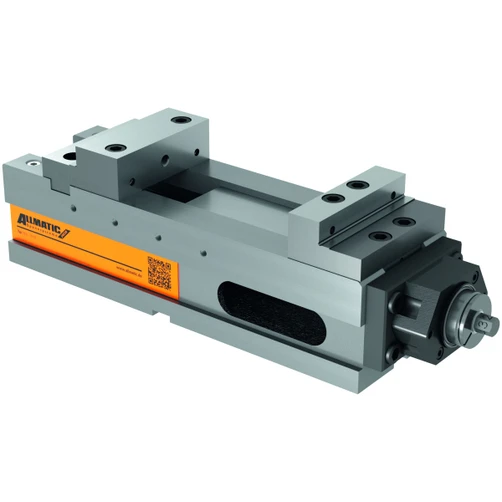

Compact size: Optimum ratio between clamping range and overall length. The clamping force can be pre-set without using tools: in 11 steps: Jaw width 90 mm, in 4 steps: Jaw width 125 / 160 / 200 mm. Particularly rigid base body of GJS-60, top and bottom faces ground; pairing accuracy 0.02 mm.
Feature:
Fully enclosed low-maintenance nitrided spindle!
- Increased service reliability.
- Optimized swarf protection.
- Minimized cleaning requirement.
With 25H6 M10 holes at 200 mm pitch for zero-point clamping system.
Application
Can be used horizontally or laterally, since the side faces are ground to an accuracy of -0.05 mm.
Supplied with
2 stepped jaws (= standard!), 1 crank handle, 4 table clamps.
Optional extras
- Clamping stud No. 360025 - 25 M10.
| Min. clamping range, 1 | 0 mm |
|---|---|
| Max. clamping range, 1 | 126 mm |
| Series | NC8 |
| Manufacturer's designation | NC-Hochdruckspanner NC8, Typ: 90 |
| Clamping range | 1 |
| Max. overall length L | 339 mm |
| Base body length a | 283 mm |
| Base body height c | 80 mm |
| Jaw width A | 90 mm |
| Jaw height h | 34 mm |
| Interchangeable jaws | Yes |
| Clamping force selection | Maximum clamping force |
| Clamping force | 28 kN |
| Tenon slots | Longitudinal slot; cross-slot |
| Transverse slot width n | 20 mm |
| Width of longitudinal groove l | 20 mm |
| With bore | Yes |
| Hole diameter D | 25 mm |
| Pitch | 200 mm |
| With thread | Yes |
| Number of threads | 3 pcs. |
| Thread size M | M10 |
| Version | Zero-point clamping system |
| Weight | 15 kg |
| Material | Spheroidal graphite iron |
| Surface | Ground; nitrided |
| Accuracy | 0.02 mm |
| Type of product | Machine vice |
