Version:

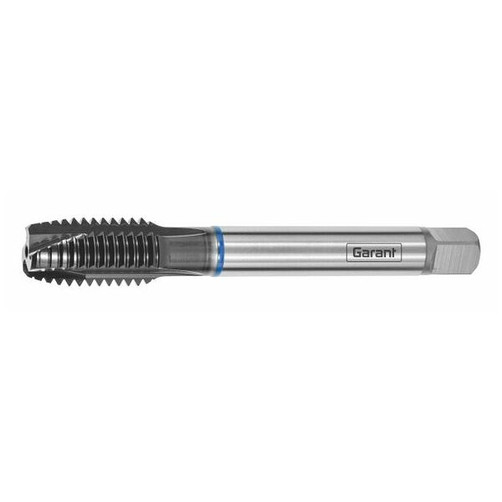

High-performance tap, specially developed for good process reliability
in stainless and acid-resistant steels and duplex materials.
- HSS-E-PM tool material for maximum wear resistance
- The latest generation of TiAlN multi-layer coating
- Parameterised flute geometry for optimum chip formation and torsional rigidity

Application:
For UNC uniform coarse threads ASME ‚àí B1.1.

Technical Data
| Series | Master Tap | |
| Coating | TiAlN | |
| Thread type | UNC | |
| Flank angle | 60 degrees | |
| Tool material | HSS E PM | |
| Standard | DIN 371 | |
| Tolerance class | 2BX | |
| Taper lead form | B | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3√óD for through holes | |
| Cutting direction | right-hand | |
| Type of threading tool | Machine tap for dynamic machining | |
| Colour ring | blue | |
| Type of product | Tap |

Identification numbers & Classifications
| Article number | 133356 | |
| EAN / GTIN | 4062406208066 |
