Version:
Sturdy extractor (galvanised) with ergonomically shaped sliding hammer.
Application:
For extracting and pulling off parts with internal threads (taper pins or dowel pins) and ball bearings. The appropriate adapter or internal extractor is attached to the part to be extracted, which is then pulled off by firm strikes with the sliding hammer.
Supplied with:

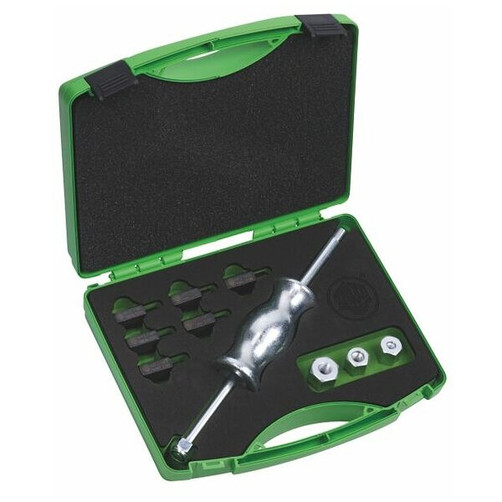

Pin extractor in a plastic case (275×230×80 mm) with 6 threaded inserts (M3 − M10), 3 adapters for internal extractors No.
882600. For M12 the slide bar is used without a threaded insert. Accepts threaded inserts to DIN 913.
Technical Data
| Adapter for internal extractor |
|
M7×M12, M10×M12, 15-16G×M12 |
| Hammer mass |
|
0.9 kg |
| Hammer travel |
|
230 mm |
| suitable for threads |
|
M3; M4; M5; M6; M8; M10; M12 |
| Type of product |
|
Pin extractor |
Identification numbers & Classifications
| Article number |
|
882000 |
| EAN / GTIN |
|
4021176924569 |
| Manufacturer number |
|
KS-22-01 |
The KUKKO Pin Extractor Set (Article No. 882000) delivers precision and durability for professionals working with components that have internal threads, such as taper pins, dowel pins, and ball bearings. Built in Germany, this tool set features a galvanized extractor body and a 0.9 kg sliding hammer with 230 mm travel, enabling strong and controlled impact force. It includes six DIN 913 threaded inserts (M3 to M10) and three adapters (M7×M12, M10×M12, 15–16G×M12), all designed to work seamlessly with KUKKO internal extractors (No. 882600). For M12 applications, users can operate the slide bar without an insert, offering added flexibility. Additionally, the complete set comes packed in a compact, durable plastic case (275×230×80 mm), making it easy to carry between jobs. Whether you're working in industrial maintenance or automotive repair, this tool set supports fast, accurate extractions—even in challenging Canadian environments.
