Torque wrench ∙ Torque range min-max: 4 – 40 Nm ∙ Accuracy: 2% ∙ 1/4 inch (6.3 mm) square, solid ∙ Length: 256 mm

(No reviews yet) Write a Review

Description

Safety:
- Haptic (close-gap release)
- Audible (″click″ sound)
Easy and safe adjustment of the desired torque value by turning the handle
Especially slim design thanks to spring-loaded puller sleeve for locking the setting values
Accuracy ± 2 % of the scale value (6106-1CT ± 4%) (in direction of actuation for right-hand tightening)
For left-hand tightening, use our torque wrenches with insert tool
Application: engines, gearboxes, machinery, industry, model making
With calibration certificate and serial number
DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1
Made in Germany
Output: Square, solid 6.3 mm (1/4 inch)
Dimensions / length: 256 mm
Net weight: 0.4 kg
Nm min-max: 4 – 40 Nm
Tolerance: 2 %
Scale Graduation (Nm): 0.4 Nm
Actuating force min.-max. kg: 2.0 – 21.4 kg
Number of teeth: 20 (Opening angle 18°)
Head Thickness a: 10.2 mm

Head Width b: 24 mm

Not according to DIN, as the maximum torque value of the square specified in the standard 6789-1:2017 is exceeded

No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required

Technical Data

maximum torque		40 Nm
Torque measuring accuracy		±2 %
Overall length L		256 mm
Head width b		24 mm
Head height h		10.2 mm
Weight		400 g
Square drive		1/4 in
Deflection function		ja
Type of product		Torque Wrench

Torque wrench ∙ Torque range min-max: 4 – 40 Nm ∙ Accuracy: 2% ∙ 1/4 inch (6.3 mm) square, solid ∙ Length: 256 mm

Torque wrench ∙ Torque range min-max: 4 – 40 Nm ∙ Accuracy: 2% ∙ 1/4 inch (6.3 mm) square, solid ∙ Length: 256 mm

Write a Review

Hazet

Torque wrench ∙ Torque range min-max: 4 – 40 Nm ∙ Accuracy: 2% ∙ 1/4 inch (6.3 mm) square, solid ∙ Length: 256 mm

Hazet

Technical Data

Kraftform screwdriver holder for 1/4 inch bits C 6.3 with flexible shank 6,3 mm

Stahlwille adjustable torque wrench

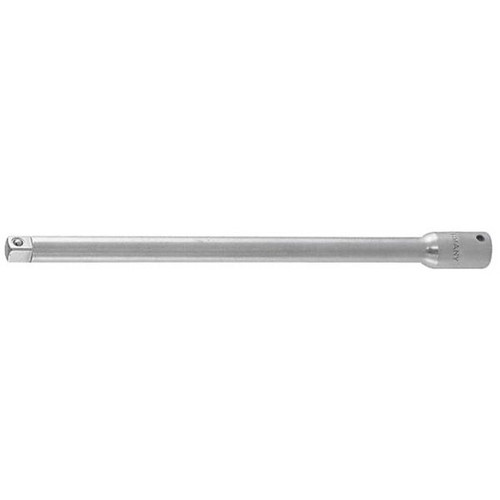

Extension, 1/4 inch 150 mm
