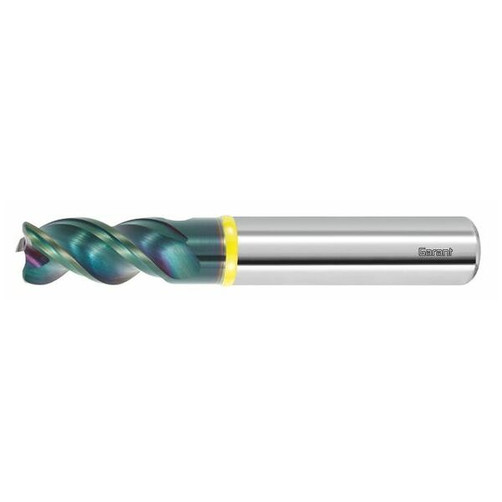

Version:
With the latest generation of DLC coating sp2.
For roughing and finishing.
Up to 2 √ó D into solid material at very high feed rates and smooth cutting action.
Very high feed rates when plunging vertically.
Ramping capability up to 45°.
For roughing and finishing.
Up to 2 √ó D into solid material at very high feed rates and smooth cutting action.
Very high feed rates when plunging vertically.
Ramping capability up to 45°.

Advantage:
Optimised flute form, eccentric relief ground, generous chip spaces.

Technical Data
| Series | Master Alu | |
| Coating | DLC | |
| Tool material | Solid carbide | |
| Standard | DIN 6527 | |
| Type | W | |
| Tolerance nominal ⌀ | e8 | |
| No. of teeth Z | 3 | |
| Helix angle | 42 degrees | |
| Helix angle characteristic | unequal spacing | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1√óD; Full slot cutting depth 1√óD | |
| Shank | DIN 6535 HA to h6 | |
| Balance quality with shank | G 2.5 with HA | |
| Through-coolant | no | |
| Machining strategy | HPC | |
| Colour ring | yellow | |
| Type of product | End / face mill |

Identification numbers & Classifications
| Article number | 202004 | |
| EAN / GTIN | 4062406125875 |
