Version:

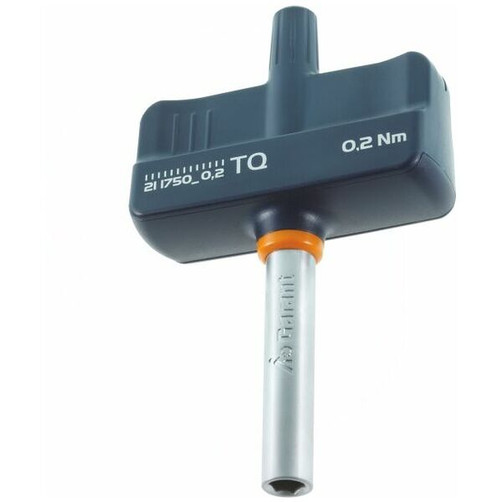

Torque screwdriver with easy-grip 2-component T-handle. The torque is fixed. Toolholder with permanent magnet.

Function:
When the torque is reached the screwdriver triggers with clearly audible and perceptible signal. The long-travel indication gives the user an unmistakable signal that the set torque has been reached.

Application:
In conjunction with 1/4 inch bits with C 6.3 or E 6.3 shank, e.g. Torx Plus® bit No. 674252. Ideal for precise tightening of indexable inserts to the specified torque.

Standard:
Tested to DIN EN ISO 6789.

Note:
Supplied without bit.
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.

Technical Data
| Direction of tightening | Right-hand tightening | |
| Bit socket | D 6,3; F 6.3 | |
| Release signalling | akustisk; haptisk | |
| Trigger principle | Mechanical long travel release | |
| Connection format | Bit holder 1/4 inch | |
| Measurement technology | mechanical | |
| Data can be recorded | no | |
| Setting the trigger value | preset | |
| Feedback | triggering | |
| Reversible reading | Nm | |
| Measurement process | Torque | |
| Adjustable trigger value | non-adjustable | |
| Standard | DIN EN ISO 6789 | |
| Type of product | Torque screwdriver |
Identification numbers & Classifications
| Article number | 211750 | |
| EAN / GTIN | 4045197885265 |
