Version:
Function:
Standard:
Accuracy:
Size 2.2 - 5.7 = ± 10 % of the stated value.

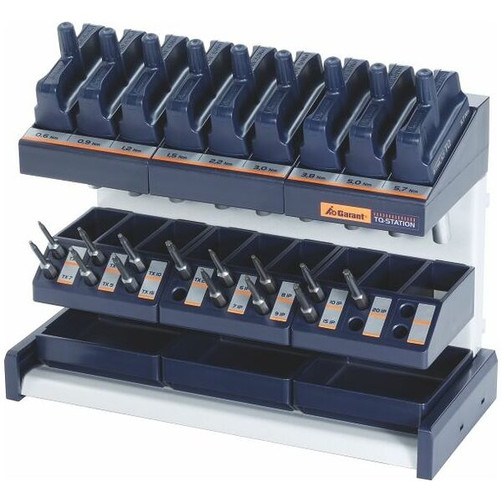

Supplied with:
Bits for Torx® No. 674248: 1 each size TX6; TX7; TX8; TX9; TX10; TX15; TX20
Bits for Torx Plus® No. 674252: 1 each size 6IP; 7IP; 8IP; 9IP; 10IP; 15IP; 20IP
Storage station: 1 pc.
Container boxes (drawers): 3pcs.
Note:
The individual sizes of the torque screwdrivers are available under No. 211750.
Technical Data
| Direction of tightening | Right-hand tightening | |
| Torque measuring accuracy | ±10 %; ±15 % | |
| Bit socket | F 6.3 | |
| Overall length L | 107 mm | |
| Release signalling | haptic | |
| Trigger principle | mechanical long travel release | |
| Connection format | Bit holder 1/4 inch | |
| Measurement technology | mechanical | |
| Data can be recorded | no | |
| Setting the trigger value | preset | |
| Feedback | triggering | |
| Reversible reading | Nm | |
| Measurement process | Torque | |
| Adjustable trigger value | preset | |
| Standard | DIN EN ISO 6789 | |
| Drive profile | Screwdriver for TORX® screws; Screwdriver for TORX PLUS® screws | |
| Type of product | Torque screwdriver |
Identification numbers & Classifications
| Article number | 659965 | |
| EAN / GTIN | 4045197614469 |
