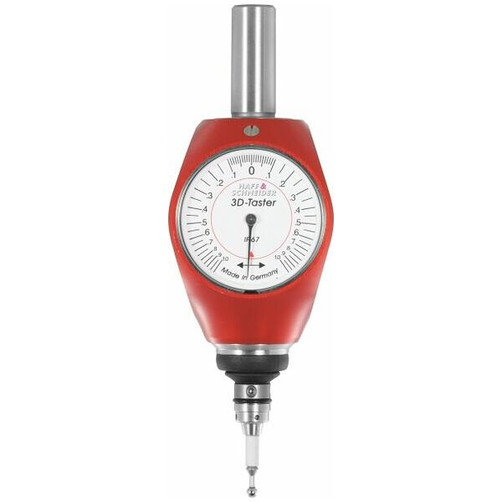

Article no.: 359550Version:
- Linear scale.
- Suitable for measuring.
- Precise operation.
- Compact design avoids collisions when finding edges.
- Convenient and exact concentricity adjustment.
- One scale for both radial and axial run-out.
Function:
IP67: Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.
Application:
Precision measuring device for milling and spark erosion machines. For determining component zero-points, measurement of lengths, bore centers and reference edges.
Supplied with:
With contact point No. 359505 size 4.
Optional extras:
Contact point No. 359505 size 6.
Note:
Digital 3D edge finder No. 359500.
Suitable contact points No. 359505 and spare glass No. 359510.
Suitable contact points No. 359505 and spare glass No. 359510.
