Version:

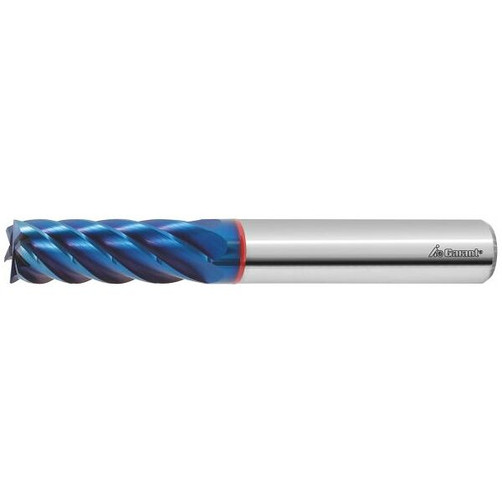

GARANT Diabolo:
Special geometry, coating and carbide, specially for hard machining.
Special geometry, coating and carbide, specially for hard machining.
Application:
For profile milling as finishing.
(Plunge cutting only to shallow depths).
(Plunge cutting only to shallow depths).
Technical Data
| Series | Diabolo | |
| Cutting edge ⌀ DC | 12 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | H | |
| Tolerance nominal ⌀ | e8 | |
| No. of teeth Z | 6 | |
| Helix angle | 50 degrees | |
| Helix angle characteristic | unequal spacing | |
| Direction of infeed | horizontal and oblique | |
| Cutting width ae for milling operation | 0.05√óD for side milling | |
| Shank | DIN 6535 HA to h6 | |
| Through-coolant | no | |
| Machining strategy | HPC | |
| Flute length Lc | 36 mm | |
| Overall length L | 93 mm | |
| Shank ⌀ Ds | 12 mm | |
| Corner chamfer angle | 90 degrees | |
| Feed fz for side milling in steel < 65 HRC | 0.025 mm | |
| Colour ring | red | |
| Type of product | End / face mill |
Identification numbers & Classifications
| Article number | 203282 12 | |
| EAN / GTIN | 4045197597519 |
