Description

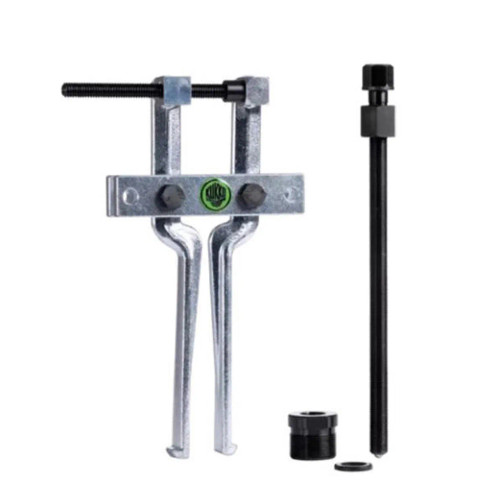

The internal extractors of the 818-021 series are used together with an extractor with hydraulic spindle of the 818-0 series for extracting internal bearings, bearing outer rings and bushes in trade, workshops and industry. The model series is based on a modular system and can therefore be extended in many ways. The internal extractors with pull spindle, spindle nut, washer and threaded bush with smooth bore are completely ready for use in combination with the extractor and can be used in a variety of ways.
Application
- Together with an extractor with hydraulic spindle of series 818-0 for extracting internal bearings, bearing outer rings and bushes
Benefit
- Other pullers in the 800 series have the same hydraulic spindle and do not require any additional accessories
- There are numerous, easily interchangeable and combinable individual parts for the 800 series
Operation
- Unscrew the hydraulic spindle of the extractor and screw in the mechanical spindle of the internal extractor with power groove
- Mount the internal extractor on the extractor
- Insert the internal extractor into the bore and actuate the mechanical spindle to extract the bearing safely and gently
Included with these Kukko products:
818-215 Hydraulic bearing puller and extractor set
845-858 Universal hydraulic puller and extractor set with self-centering
jaws with separator
Spare Part for this Kukko product:
845-858 Universal hydraulic puller and extractor set with self-centering
jaws with separator
Technical Data
| Diameter | 30 - 180 mm | |
| Imperial | 1 3/16 - 7 1/8 inch | |
| Weight | 2.8 kg |
Identification numbers & Classifications
| Article number | R-L80010 1832 | |
| EAN / GTIN | 4021176757969 | |
| Manufacturer number | 818-021 |
