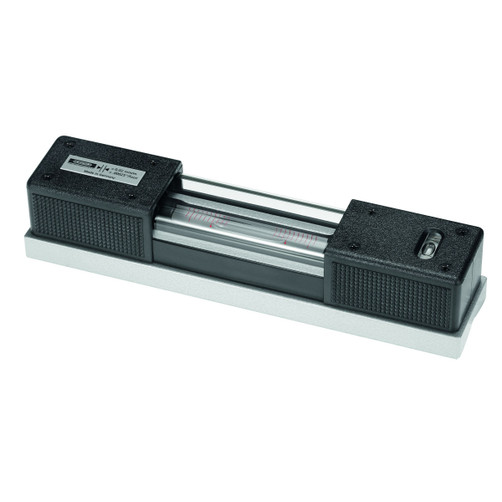

Sturdy housing of high quality special casting; hammer finish. Vee and flat base with precision-ground contact surfaces in the angle (important for marking out, aligning, etc.). All measuring faces are exactly parallel to the axis of the vial. One longitudinal and one transverse vial each of glass. With insulated handles on the housing and protective glass over the vials.
Full thermal insulation over the entire housing protects against the effects of the heat of hands or breath. Recess in the body permits a side view of the vial. Supplied in a sturdy plastic case with suitable inlay.
Full thermal insulation over the entire housing protects against the effects of the heat of hands or breath. Recess in the body permits a side view of the vial. Supplied in a sturdy plastic case with suitable inlay.
Application:
For aligning surfaces, shafts, machines etc.
Standard:
DIN 877
Accuracy:
1 = with very high sensitivity longitudinal vial 0.02 mm/m.
2 = with high sensitivity longitudinal vial 0.1 mm/m.
2 = with high sensitivity longitudinal vial 0.1 mm/m.
4 = with normal sensitivity longitudinal vial 0.4 mm/m.
| Scale graduations | 0.02 | |
| Measurement technology | analogue | |
| Packaging | plastic case | |
| Length | 200 mm | |
| Width | 42 mm | |
| With magnet | no | |
| Number of horizontal vials | 1 | |
| Number of vertical vials | 1 | |
| Accuracy class | 1 | |
| Type of measurement face | prismatic | |
| Standard | DIN 877 | |
| Material of the housing | cast iron | |
| Type of product | spirit level | |
| Can be calibrated | yes | |
| Can be recalibrated | yes |
Identification & Classification
| Article number | 468810 200/1 | |
| EAN / GTIN | 4030616402208 |
