Measurement Tools

GARANT

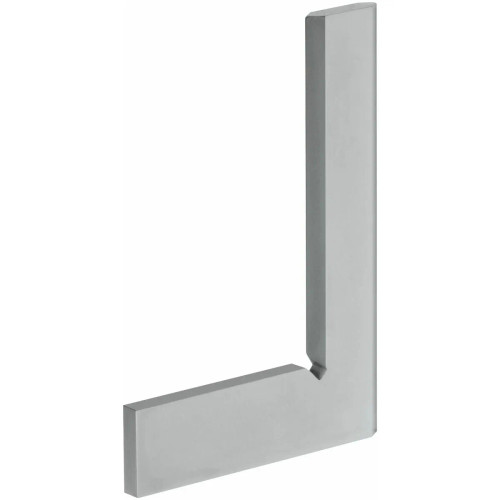

Bevel edge square, flat version stainless, accuracy class

Version: Very high accuracy. With two bevelled straight edges on the long blade.Through hardened and stress-relieved. Test faces ground and lapped, other faces ground.  Application: For inspection work using the light gap principle.   Technical...

Holex

Engineer’s precision steel rule stainless, matt finished 300 mm

Version: Of special stainless clock spring steel with ground measuring edges. Wide version. Upper and lower edges both with mm graduations. Very easy to read due to matt surface and sharp graduation scale.Graduations electrolytically etched. Matt...

Holex

Plumb bob 300 g

Version: Of steel, bright turned. With centre point and screw-in brass button. Technical Data Weight 300 g Type of product Plumb bob Identification numbers & Classifications Article number 467584 EAN / GTIN 4045197437808 ...

HASBERG

Feeler gauge shim roll 12.7 mm×5 m

Version: Cold rolled, hard spring feeler strip steel of maximum precision. From size 0.02, the strip thickness is continuously marked and cannot be wiped off (exception: for No. 478502 from size 0.08).Stored in a practical dispenser; pull out like a...

Holex

Steel gauge block Tolerance class 1

Version: Made of aged special steel. Hardened (HRC 64 − 66) with slightly bevelled edges. Lapped gauge faces.With free test certificate traceable to national standards:Each gauge block is provided with its own unique identity number. The actual...

Holex

Feeler gauge shim strip set In a wall rack 0,01-0,25

Version: 15-piece set in a metal wall rack. Feeler gauges in plastic boxes. Content: 1 each feeler gauge shim roll No. 478502: 0.01 to 0.1 (0.01 increments) 0.12; 0.15; 0.18; 0.20; 0.25 Supplied with: Fastening material and feeler gauge holder No...

HG

Hydraulic small stand with magnetic base

Version: Hydraulic measuring stand with central clamping. One hand remains free for configuring the dial indicator. All joints are rigidly clamped by the central button. Patented mechanism generates high pressure so that the hand wheel needs only slight...

Mitutoyo

Lever dial indicator contact point length 15.2 mm 0,1/40 mm

Version: High-precision lever dial indicator with jewel-mounted mechanism, in handy, robust design. Housing and dovetail block are of one piece, which means that mounting is particularly rigid. Corrosion protection due to matt chrome-plated housing...

Dial indicator shock-resistant 10/58 mm

Holex Dial Indicator Shock-Resistant Version: Dimensions to DIN EN ISO 463, issue June 2006. Shock-resistant precision dial indicators. Clamping shank ⌀ 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Outer ring...

GARANT

Digital dial indicator 0.01 mm reading 12,5 mm

Version: Digital dial indicator with very large (12 mm), high-contrast LCD display. Immediately ready for use when switched on due to reference system. The REFERENCE measuring system saves and retains the set zero position, even after being switched on...

Dial indicator 10/58 mm

Holex Dial Indicator 10/58 mmVersion: Dimensions to DIN EN ISO 463, issue June 2006. Precision dial indicators with metal housing, clamping shank ⌀ 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Central pointer...

Precision small dial indicator shock-resistant 5/40 mm

Version: Precision small dial indicators with strong metal casing, clamping shank ⌀ 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial.Shock-resistant.Dimensions to DIN EN ISO 463, issue June 2006.  Optional...
