Version:

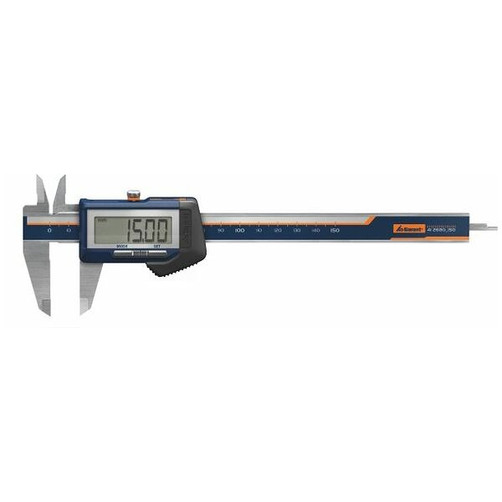

Digital calipers to IP54 with data output. Easy-to-read, high-contrast LCD display with 11.5 mm character height. Very long battery running time due to modern energy-efficient measurement system. The system switches automatically into power-saving mode after 20 minutes; moving the caliper reactivates it. There is no loss of the measurement value or zero point. With preset (dimension selection in advance). Ergonomic housing with easy-grip Haptoprene component. The measuring faces are precision-lapped.
Advantage:
- Ergonomic housing with easy-grip Haptoprene component.
- Long battery life.
- Large high-contrast LCD display with 11.5 mm character height.
- New modern design.
Function:
IP54: Protected against splashed water from all directions and protected against penetration of dust into the inside (protected against dust), also completely protected against touching.
Supplied with:
1 battery No. 081560 size CR2032.
Optional extras:
Spare part:
Technical Data
| Standard | ISO 13385 | |
| Measuring range | 0 mm - 150 mm | |
| Scale divisions | 0.01 mm | |
| Scale divisions | 0.0005 inch | |
| Reversible reading | mm / inch | |
| Measurement deviation E MPE | ± 0.02 mm | |
| Depth gauge | rectangular 3.7×1.3 | |
| Interface | RS232C interface; USB interface | |
| IP Index of Protection | IP 54 | |
| Jaw length | 40 mm | |
| Measurement technology | digital | |
| Material | Stainless steel, INOX | |
| all parts | hardened | |
| Packaging | sturdy box | |
| Power supply | Battery-powered | |
| Number of batteries contained | 1 | |
| Article no of the battery / rechargeable battery fitted | 081560 CR2032 | |
| Type of product | Universal calipers |
Identification numbers & Classifications
| Article number | 412680 150 | |
| EAN / GTIN | 4045197949349 |
