Version:
For finishing operations.
Special geometry for optimum chip evacuation.
Unequal spacing gives high intrinsic stability and smooth cutting action.
For profile milling as a finishing operation.
Special geometry for optimum chip evacuation.
Unequal spacing gives high intrinsic stability and smooth cutting action.
For profile milling as a finishing operation.

Note:
Order the uncoated version using No. 203207.

Technical Data
| Series | Master Alu | |
| Coating | DLC | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | W | |
| Tolerance nominal ⌀ | h6 | |
| No. of teeth Z | 5 | |
| Helix angle | 38 degrees | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal | |
| Cutting width ae for milling operation | 0.1√óD for side milling | |
| Shank | DIN 6535 HA to h6 | |
| Balance quality with shank | G 2.5 with HA | |
| Through-coolant | no | |
| Machining strategy | HPC | |
| Corner chamfer angle | 90 degrees | |
| Colour ring | yellow | |

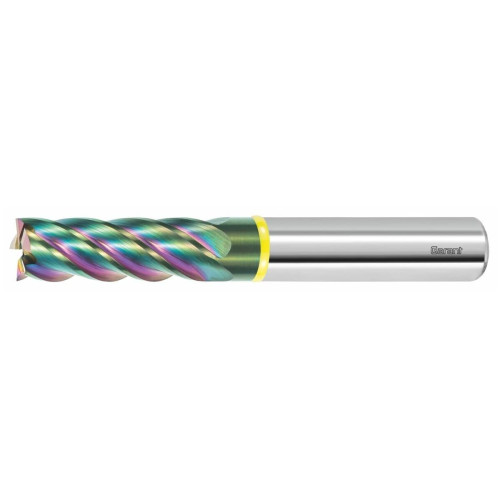

| Type of product | End / face mill |

Identification numbers & Classifications
| Article number | 203203 | |
| EAN / GTIN | 4062406119409 | |
| Manufacturer number | 203203 |
